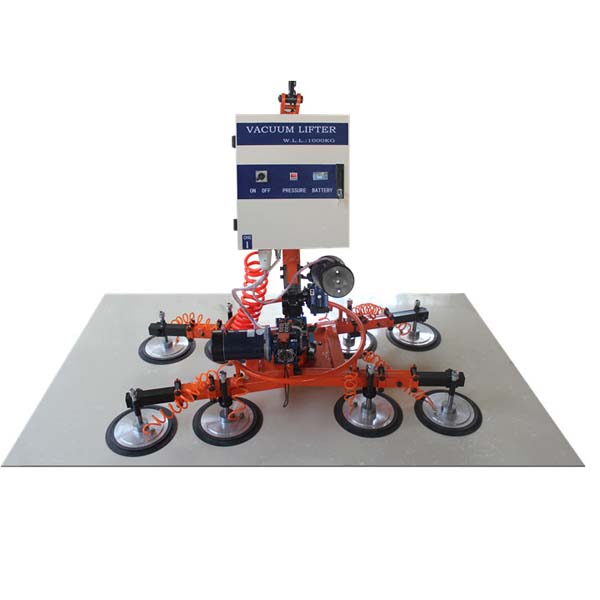

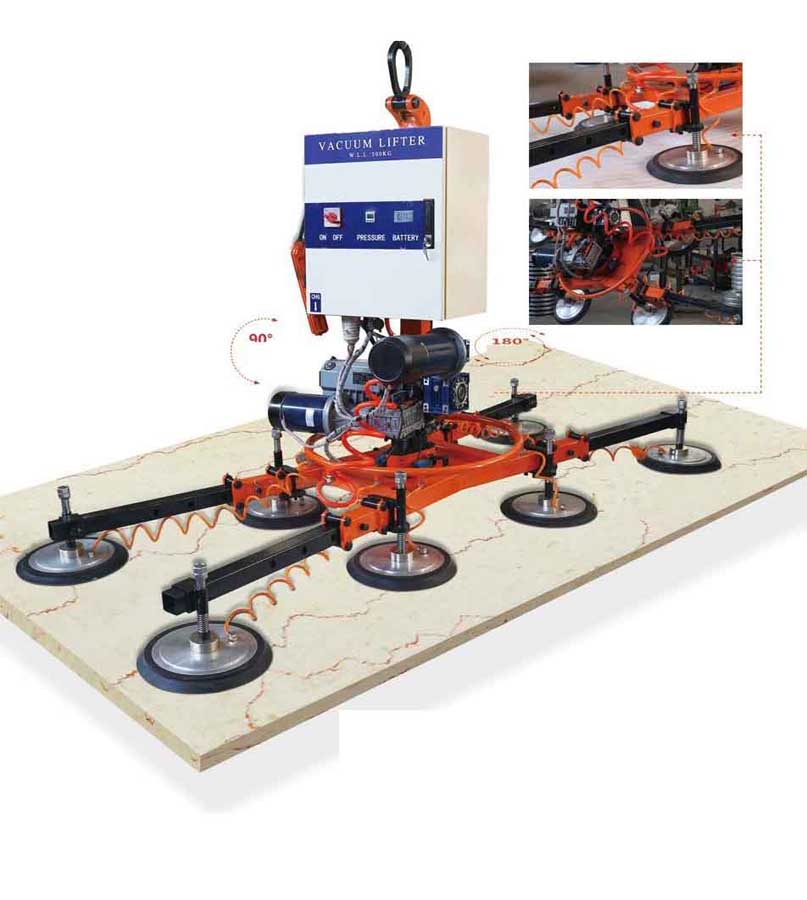

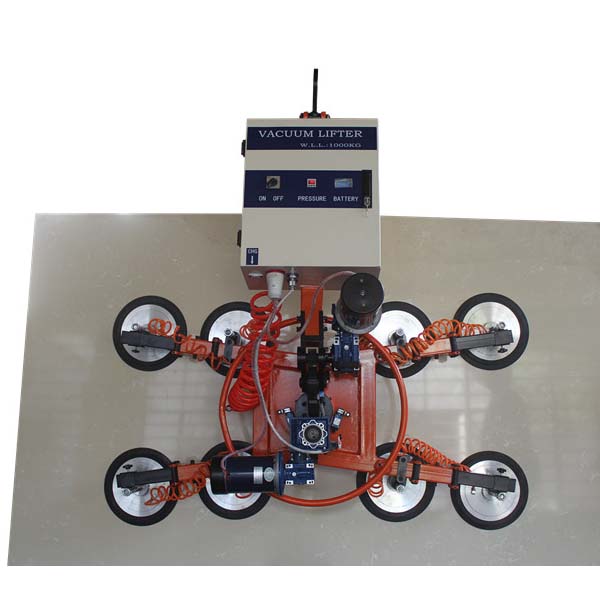

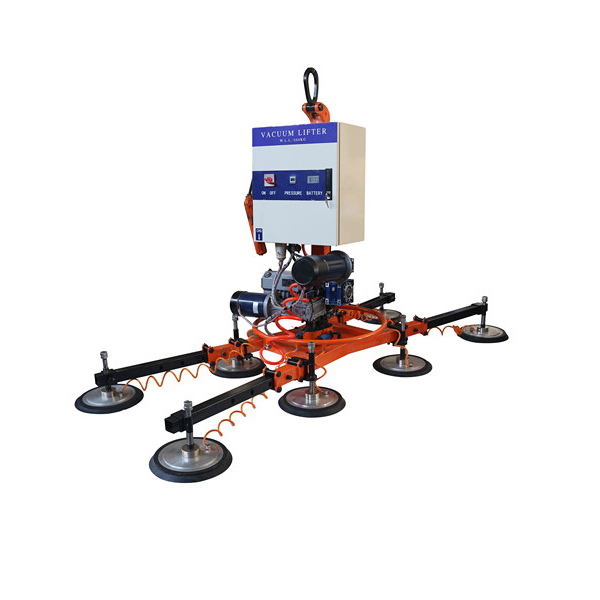

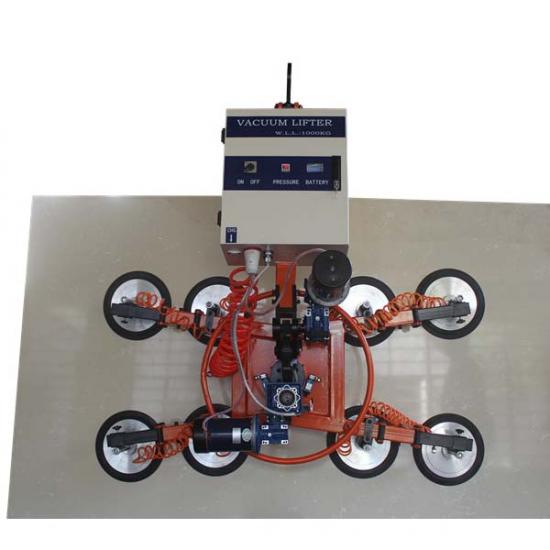

The automatic vacuum lifter is easy operation for lifting and moving stone slabs, glass and steel plates.By the remote control,it can tilt horizontally or vertically,reverse to 90°and rotate to 180°.
The automatic vacuum lifter is easy operation for lifting and moving stone slabs, glass and steel plates.By the remote control,it can tilt horizontally or vertically,reverse to 90°and rotate to 180°.
Item NO.:
AC-500-8Product Origin:
ChinaShipping Port:
XiamenDescription
The automatic vacuum lifter is easy operation for lifting and moving stone slabs, glass and steel plates.By the remote control,it can tilt horizontally or vertically,reverse to 90°and rotate to 180°.
Technical Data
Dimension(mm)
1600(L)*830(W)*1300(H)
Net Weight
200kg
Working Loading Limit
1000kg
No.of Suction Cup
8 Pcs
Diameter of Suction Cup
300mm
Range of Slab Dimension
1000-4000mm
Reversible Angle
90°
Rotatory Angle
180°
Power Voltage/ Input Voltage
200V-AC
Battery Voltage
4V-12V-48V-DA
Remark: Other voltages and frequencies are upon demand.
