DESCRIPTION:

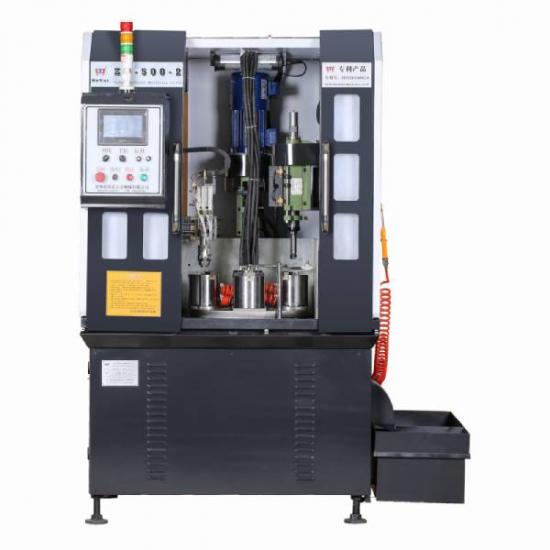

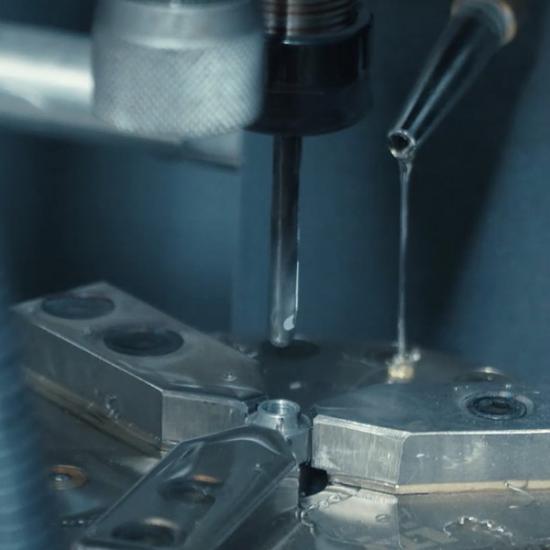

Diamond beads drilling and tapping machine is a kind of fully automatic equipment with individualized features applicable to beads drilling,tapping or both drilling and tapping. Microcomputer control and frequency conversion technology make all indicators in stable control which could pinpoint when drilling or tapping. In addition, it concentrate auto feeding, discharging, counting and auto sound-light alarm. Cooling oil or water can be automatically filtered and recycled during operation, which will keep environment clean and save much labor and resource.

FEATURES:

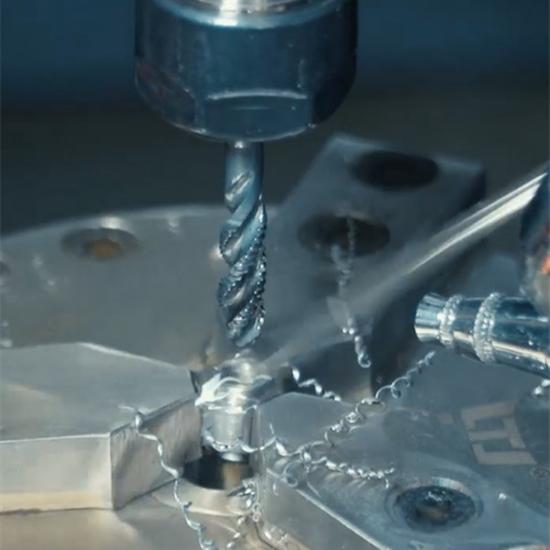

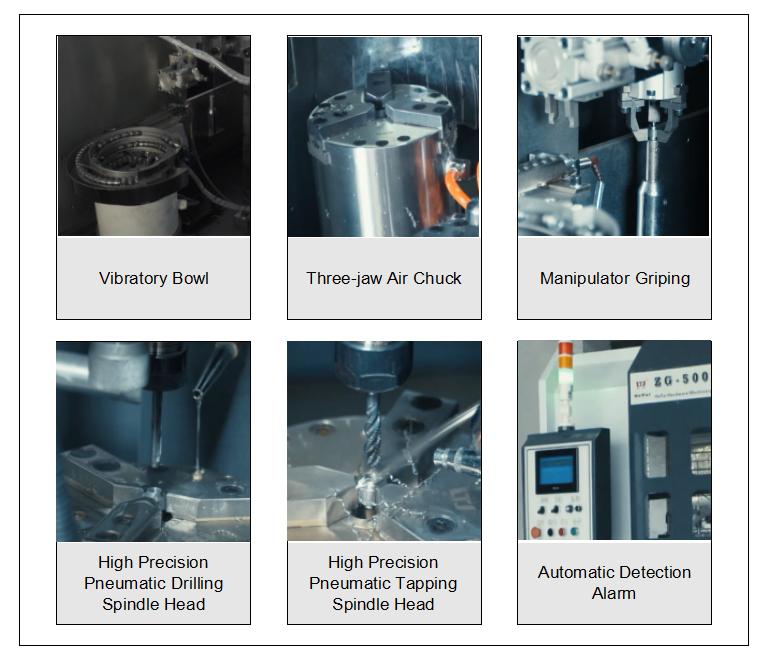

• CNC Beads Drilling And Tapping Machine is equipped with vibration bowl, pneumatic air chuck, DFH cam indexer, YASKAWA frequency converter , pneumatic drilling spindle pin, which enable high efficiency,precision and stability.

• Automatic alarm and reminder once it finishes working process, or when the drill or tap cracks.

• Touch panel and intelligent control make it easy to operate, free switch between auto operation and manual operation.

• Closed processing environment with dust absorption system ensures clean working condition.

TECHNICAL PARAMETERS:

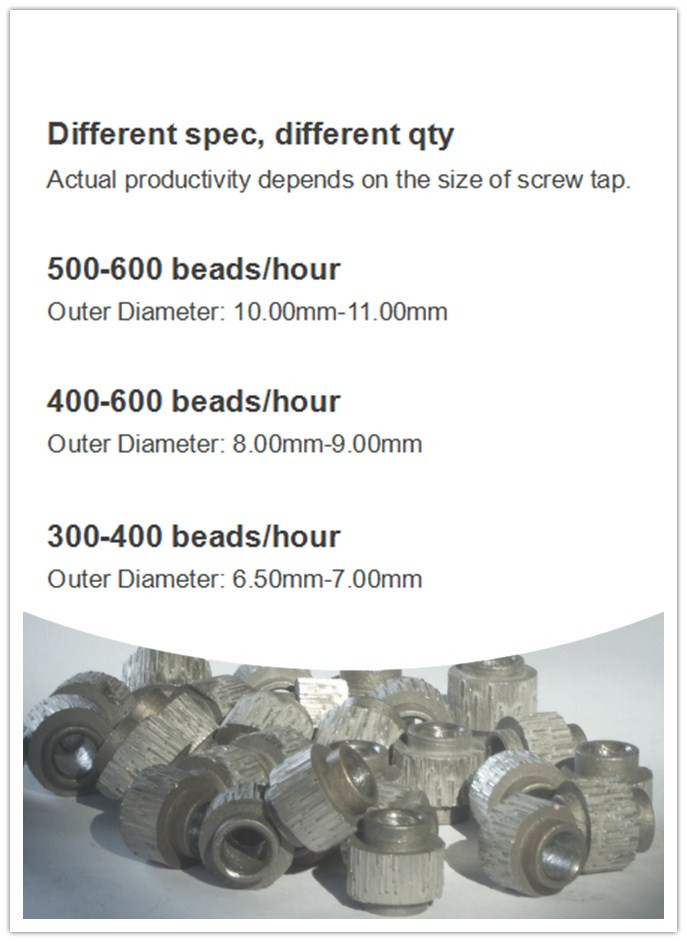

• Bead’s Outer Diameter: 6mm-13mm (other voltages and frequencies are upon demand)

• Total Power: 5kw

• Drilling Motor Power: 1.5kw

• Drilling Revolving Speed: 600-1000rpm

• Tapping Motor Power: 2.2kw

• Tapping Revolving Speed: ≈500-1000rpm

• Vibration Bowl: 200w

• DFH Cam Indexer Power: 0.55kw
